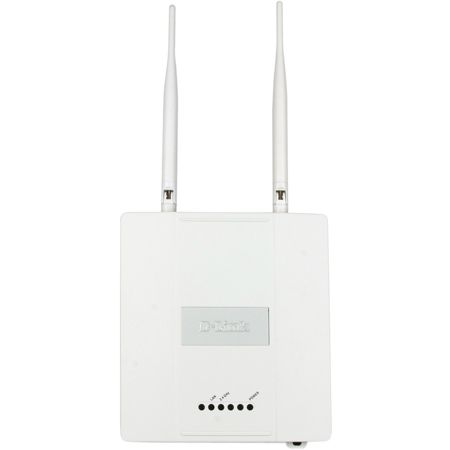

D-Link AirPremier PoE Access Point with Plenum-rated Chassis Item # 857254
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
857254
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
The DAP-2360 is a Wireless N PoE Access Point ideal for any network administrator to create or expand the capacity of a wireless network. This Access Point can be used in high-traffic areas such as airports, coffee shops, shopping centers, sporting venues, and university campus deployments. Providing transfer rates of up to 300 Mbps in the 2.4 GHz frequency range, users can connect wirelessly with legacy 802.11b/g adapters as well as the latest 802.11n adapters to enjoy faster downloads and instant communication.The DAP-2360 allows network administrators to deploy a highly manageable and extremely robust 802.11n wireless network. The included detachable antennae provide optimal wireless coverage in the 2.4 GHz band using a high power radio design to reduce dead spots and increase capacity. Enclosed in a white plenum rated metal chassis, the DAP-2360 easily blends into ceilings or walls and adheres to strict fire codes for placement in air passageways. For advanced installations, this high-speed Access Point has integrated 802.3af Power over Ethernet (PoE), making installation easy in areas where power outlets are not readily available.The DAP-2360 delivers reliable wireless performance with maximum wireless signal rates of up to 300 Mbps in the 2.4 GHz wireless band. This, coupled with support for Wi-Fi Multimedia (WMM) Quality of Service features, makes it an ideal Access Point for audio, video, and voice applications. Additionally, the DAP-2360 supports load balancing features to ensure maximum performance by limiting the maximum number of users per Access Point.To help maintain a secure wireless network, the DAP-2360 provides the latest in wireless security technologies by supporting both Personal and Enterprise versions of WPA and WPA2 with support for RADIUS server backend. To further protect your wireless network, MAC Address Filtering, Wireless LAN segmentation, SSID Broadcast Disable, Rogue AP Detection, and Wireless Broadcast Scheduling are also included. The DAP-2360 includes support for up to eight VLANs for implementing multiple SSIDs to further help segment users on the network. It also includes a wireless client isolation mechanism, which limits direct client-to-client communication.To maximize total return on investment, the DAP-2360 can be configured to optimize network performance based on any one of its multiple operation modes: Access Point, Wireless Client, Wireless Distribution System (WDS), and WDS with Access Point. With WDS support, network administrators can set up multiple DAP-2360s throughout a facility and configure them to bridge with one another while also providing network access to individual clients. The DAP-2360 also includes advanced features such as Load Balancing, which optimizes high network traffic volume, and redundancy for fail-safe wireless connectivity. Additionally, the DAP-2360 offers Spanning Tree Protocol support for greater efficiency and to avoid broadcast storms when used in WDS mode.Network administrators have multiple options for managing the DAP-2360, including Web (HTTP), Secure Sockets Later (SSL), which provides for a secure connection to the Internet, Secure Shell (SSH), which provides for a secure channel between local and remote computers, and Telnet. For advanced network management, administrators can use the D-Link AP Manager II or D-View SNMPv3 management module to configure and manage multiple Access Points from a single location. In addition to a streamlined management process, the AP Manager II or D-View software provides network administrators with the means of verifying and conducting regular maintenance checks remotely, eliminating the need to send personnel out to physically verify proper operation. With 2.4GHz band functionality, PoE support, a plenum-rated chassis, extensive manageability, versatile operation modes, and solid security enhancements, the DAP- 2360 provides small and medium business environments with a business-class solution.
Product Details
| Item # | 857254 |
| OfficeMax # | 23615349 |
| Manufacturer # | GC6015 |
| Wireless Transmission Speed | 300 Mbit/s |
| power source | AC Adapter |
| Wireless Security | WPA Enterprise/Personal; WPA2 Enterprise/Personal; WPA2 PSK/AES; 64/128-bit WEP Encryption; MAC Address Filtering; RADIUS; IEEE 802.11i; IEEE 802.1X |
| Ethernet Port | Yes |
| Gigabit Ethernet Port | Yes |
| height | 1.5 in |
| Number of Network (RJ-45) Ports | 1 |
| Certifications & Standards | IEEE 802.11b/g/n; IEEE 802.3/3u/3ab; IEEE 802.3af; IEEE 802.11i; IEEE 802.1x; IEEE 802.1Q; FCC Class B; UL 2043; IC |
| Features | Quality of Service (QoS) |
| Ruggedized Design | Indoor |
| antenna type | Dipole Antenna |
| PoE (RJ-45) Port | Yes |
| width | 6.5 in |
| Product Line | AirPremier |
| package contents | Air Premier DAP-2360 Wireless PoE Access Point; Wall Mounting Brackets; Power Adapter; CAT5 Ethernet Cable; CD-ROM with User Manual; Install Guide |
| depth | 7.4 in |
| Product Name | Air Premier DAP-2360 Wireless PoE Access Point |
| Antenna Gain | 5 dBi |
| manufacturer | D-Link Systems, Inc |
| Management | DHCP; HTTP/HTTPS; SNMP v1/v2c/v3; AP Manager II; Telnet; IEEE 802.1q; MIB; D-View 6.0 |
| weight | 1.69 lb |
| brand name | D-Link |
| Wireless LAN Standard | IEEE 802.11n |
| Input Voltage | 48 V DC |
| Power Over Ethernet (PoE) Supported | PoE |
| ISM Maximum Frequency | 2.48 GHz |
| ISM Band | Yes |
| form factor | Wall Mountable |
| color | white |
| ISM Minimum Frequency | 2.40 GHz |
| warranty length | limited lifetime |
| model name | DAP-2360 |
| Fast Ethernet Port | Yes |
| Show More ▾ |
Customer Reviews
From the Manufacturer|
Description
-
Overview
The DAP-2360 is an 802.11n Plenum-rated PoE Access Point ideal for any network administrator to create or expand the capacity of a wireless network. This access point is mainly used in high traffic indoor areas such as airports, coffee shops, shopping centers, sporting venues, and university campus deployments.1 At transfer rates of up to 300 Mbps in the 2.4 GHz frequency range, users are able to connect with legacy 802.11g adapters as well as the latest 802.11n adapters to enjoy faster downloads and instant communication.2 -
Versatile Access Point
The DAP-2360 allows network administrators to deploy a highly manageable and extremely robust 802.11n wireless network. The included antennas are detachable and provide optimal wireless coverage in the 2.4 GHz (802.11g and 802.11n) band using a high power radio design to reduce dead spots and increase capacity. Enclosed in a white plenum-rated metal chassis, the DAP-2360 easily blends into ceilings or walls and adheres to strict fire codes for placement in air passageways. For advanced installations, this high-speed access point has integrated 802.3af Power over Ethernet (PoE), making installation easy in areas where power outlets are not readily available.
-
Security
To help maintain a secure wireless network, the DAP-2360 provides the latest in wireless security technologies by supporting both Personal and Enterprise versions of WPA and WPA2 (802.11i) with support for RADIUS server backend. To further protect your wireless network, MAC Address Filtering, Wireless LAN segmentation, Disable SSID Broadcast, Rogue AP Detection, and Wireless Broadcast Scheduling are also included.
The DAP-2360 includes support for up to eight VLANs for implementing multiple SSIDs to further help segment users on the network. It also includes a wireless client isolation mechanism, which limits direct client-to-client communication. -
Enhanced Performance
The DAP-2360 delivers reliable wireless performance with maximum wireless signal rates of up to 300 Mbps in the 2.4 GHz wireless band. This, coupled with support for Wi-Fi Multimedia (WMM™) Quality of Service features, makes it an ideal access point for audio, video, and voice applications. Additionally, the DAP-2360 supports load balancing features to ensure maximum performance by limiting the maximum number of users per Access Point.
-
Multiple Operation Modes
To maximize total return on investment, the DAP-2360 can be configured to optimize network performance based on any one of its multiple operation modes: Access Point, Wireless Client, Wireless Distribution System (WDS), and WDS with Access Point. With WDS support, network administrators can set up multiple DAP-2360s throughout a facility and configure them to bridge with one another while also providing network access to individual clients. Also included are advanced features such as Load Balancing, which optimizes high network traffic volume, and redundancy for fail-safe wireless connectivity. Additionally, the DAP-2360 offers Spanning Tree Protocol support for greater efficiency and to avoid broadcast storms when used in WDS mode.
-
Network Management
Network administrators have multiple options for managing the DAP-2360 Access Point, including Web (HTTP), Secure Sockets Layer (SSL), which provides a secure connection to the Internet, Secure Shell (SSH), which provides a secure channel between local and remote computers, and Telnet.
For advanced network management, administrators can use the D-Link Central Wi-Fi Manager controller software to configure and manage multiple access points from a single location. Scalable and flexible, Central WiFi Manager is accessible anytime, anywhere, though the Internet by using a web browser. In addition to a streamlined management process, Central Wi-Fi Manager software provides enterprise-level features, including bandwidth optimization, captive portal, and RF optimization. Also available is AP Array, allowing the management of a set of network devices as a single group for easy configuration and deployment. The DAP-2360 also has a wireless scheduler feature for power saving and added security.
With 2.4GHz band functionality, PoE support, a plenum-rated chassis, extensive manageability, versatile operation modes, and solid security enhancements, the DAP-2360 AirPremier N PoE Access Point with Plenum-rated Chassis provides SMB environments with a business-class solution for deploying a wireless network in the workplace. -
Limited Lifetime Warranty
D-Link offers a Limited Lifetime Warranty on the DAP-2360 wireless access point to further its commitment to product quality and long-term customer confidence. -
All references to speed and range are for comparison purposes only. Product specifications, size, and shape are subject to change without notice, and actual product appearance may differ from that depicted herein.
Features
Multiple Operation Modes
• Access Point
• Wireless Distribution System (WDS)
• WDS with AP
• Wireless Client
High Performance Connectivity and Security
• IEEE 802.11n Wireless
• Up to 300 Mbps2
• Supports WPA2/WPA/WEP encryption
• Gigabit PoE Ethernet LAN port
• MAC Address Filtering
• 802.1X
• Captive portal for user authentication
Convenient Installation
• Supports 802.3af Power over Ethernet (PoE)
• Wall Mounting Brackets Included
Easy Management
• Web Browser (HTTP & HTTPS)
• Telnet
• SNMP v1, v2c, and v3
• Central WiFiManager
• SSH
• AP Array
Images
Specification
Technical Specifications
Network
Standards
• IEEE 802.11n
• IEEE 802.11g
• IEEE 802.3ab
• IEEE 802.3af
• IEEE 802.3u
• IEEE 802.3
Management
• Telnet - Secure (SSH) Telnet
• Web Browser Interface
• HTTP - Secure HTTP (HTTPS)
• Central WiFiManager
• SNMP Support
• AP Array
Security
• WPA™-Personal
• WPA-Enterprise
• WPA2™-Personal
• WPA2-Enterprise
• 64/128-bit WEP
• SSID Broadcast Disable
• MAC Address Access Control
• Rogue AP Detection
VLAN/SSID Support
• 802.1q/Multiple SSID support for up to 8 VLANs
Quality of Service (QoS)
• 4 Priority Queues
• WMM Wireless Priority
Physical
Connectivity
• 802.11b/g/n wireless
• Gigabit PoE Ethernet LAN port
Wireless Frequency Range
• 2.4 GHz to 2.4835 GHz
Operating Modes
• Access Point (AP)
• WDS with AP
• WDS/Bridge (No AP Broadcast)
• Wireless Client
Dipole Antenna Gain
• 5 dBi @ 2.4 GHz
Maximum Transmit Output Power
• 26 dBm @ 2.4 GHz
LEDs
• Power
• LAN
• 2.4 GHz
Maximum Power Consumption
• With PoE: 7.9 watts
• Without PoE: 6.5 watts
Operating Voltage
• 12 V / 1 A or 802.3af PoE
Temperature
• Operating: 32 to 104 °F (0 to 40 °C)
• Storage: -4 to 149 °F (-20 to 65 °C)
Humidity
• Operating: 10% to 90% (Non-condensing)
• Storage: 5% to 95% (Non-condensing)
Certifications
• FCC Class B
• UL 2043
• IC
• WiFi®
Weight
• 1.52 lb (689 g)
Dimensions (W x H x L)
• 6.54 x 7.40 x 1.42 inches (166 mm x 188 mm x 36 mm)
Warranty Information
• Warranty: Limited Lifetime
Ordering Information
DAP-2360 AirPremier N PoE Access Point with Plenum-rated Chassis
Data Sheet
-
Datasheet
Datasheet - opens PDF Datasheet for DAP-2360 Wireless Access Point
PDF, 742K, 3 pages
- 1 This unit is designed for indoor environments; setting up this unit in outdoor environments may violate local regulatory requirements.
- 2 Maximum wireless signal rate derived from IEEE Standard 802.11g, and 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.
